Unlike full E3 systems, the DKC-800 and DKC-850 piggybacked upgrades are powered by external AC adapters, such as the PJP-PS02. The original Yamaha Disklavier E3 installations use the Disklavier’s power supply, but these piggybacked installations require their own source of power.
I recently had a customer reach out to me using an aftermarket power adapter, and his DKC-800 would not power on. He later tried another adapter, and got it to work. But trying random power adapters is dangerous!
The Original Power Adapter
The DKC-850 upgrade system shipped with the PJP-PS02 or PJP-PS04 power adapter. This is now discontinued. However, the replacement is Yamaha part number ZT935300. The easiest place to purchase is on Yamaha 24×7 or call (888) 892-6242.

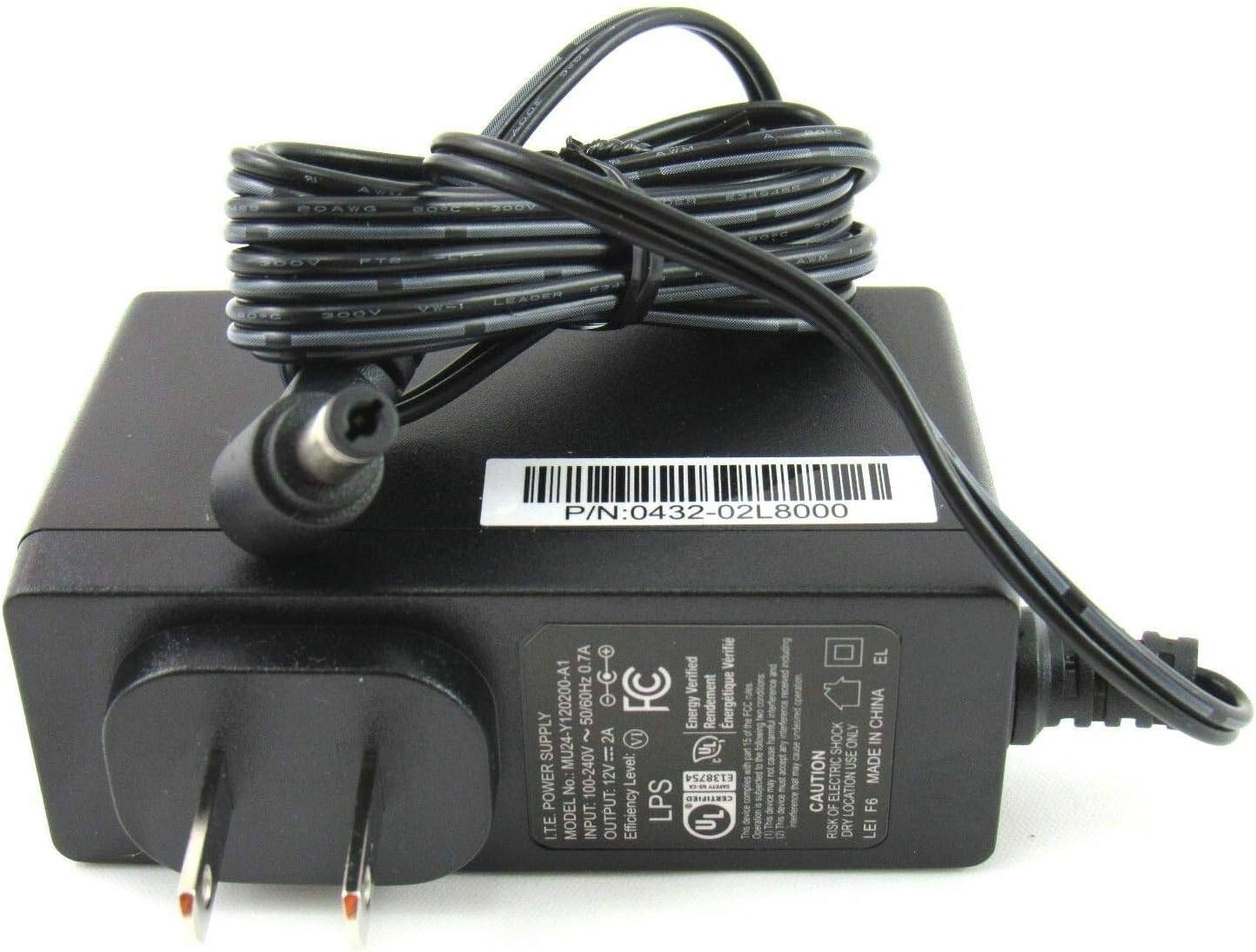

The model of power adapter is I.T.E. MU24-Y120200-A1. Although it can be sourced from other suppliers, the Yamaha model has a unique adapter tip.

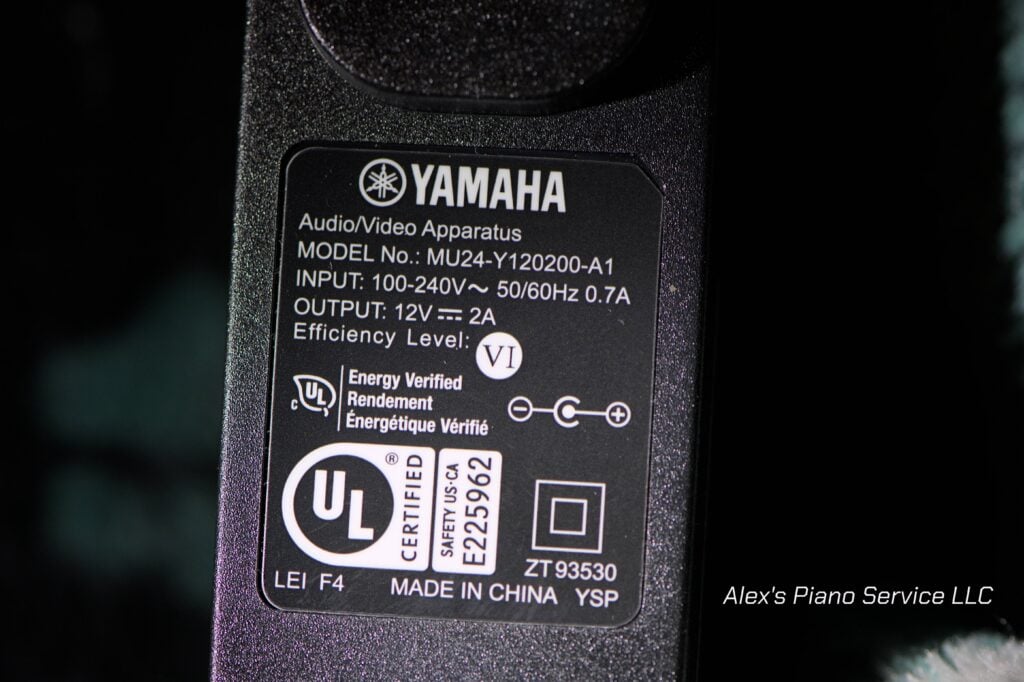

There’s an additional complication with this power adapter. The official Yamaha part is ungrounded, and that is a requirement. I’ve had multiple electrically knowledgeable technicians attempt to use replacement adapters that were adequately rated, but which altered the Disklavier’s reference ground and resulted in very poor playback.
Why Order the Genuine Yamaha Adapter?
Exact electrical spec. 12 V DC, ≥2 A, center-positive, 5.5 mm × 2.5 mm barrel—no guesswork. Trying random power adapters just because they fit is a poor policy.
Warranty integrity. Yamaha’s U.S. Disklavier warranty (see the official policy) allows only Yamaha-approved parts. A third-party power adapter can complicate future claims.
Protect Your New Adapter (and Piano) from Surges
A clean power brick won’t help if the AC line spikes. Pair the new ZT935300 with a properly sized surge suppressor to avoid future failures. Read my guide to surge protectors for Disklaviers to keep your piano—and its power supply—safe during storms and other electrical events.
